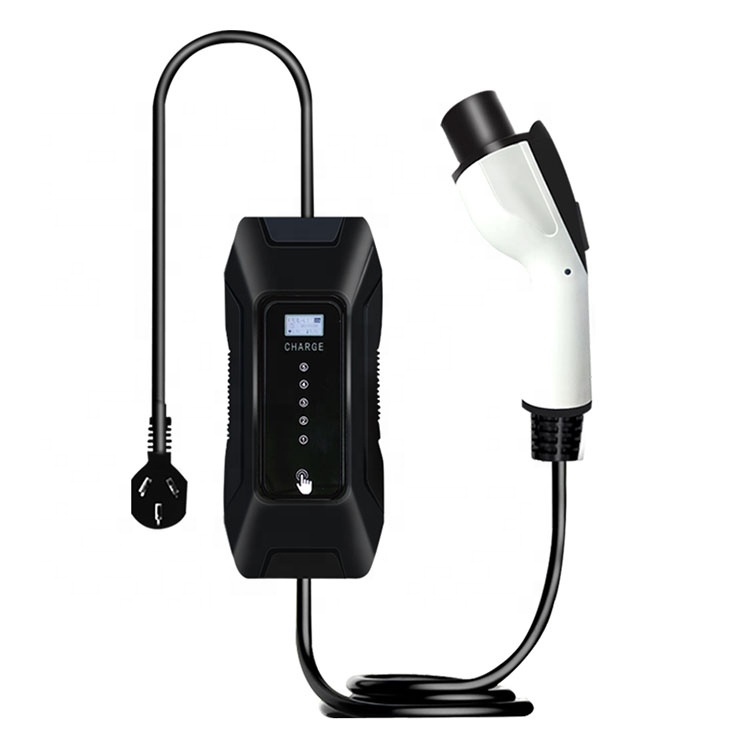

Level 1 electric car charger

Model Number:WH-P02
Brand Name:Wanhe ChinTiyan
Interface Standard:Type 1/Type 2/GBT
Output Current:AC, 32A 16A
Output Power:7kW, 3.5KW
Input Voltage:220V, 220V
Installation Method:free installation
Applied Method:plug and play
Screen Type:no screen
Current Type:AC
Cable Length:5m
Spread the love
Specification
Current Level Adjustment
8A/10A/13A/16A
Power Supply
220V, home use
Plug Type
16A air conditioner plug/10A home use plug
Charging Line
no requirement
Installation Requirement
free installation
Charging Capacity
about 3.5KW/h
Charging Efficiency
Current
Power
Mileage/hour
Charging Power
Requirements of Supplied Plug
Requirements of Supplied Cable
8A
1.5-1.7KW
10-15KM
1.5-1.7KWh
general home use plug
no
10A
1.8-2.2KW
12-15KM
1.8-2.2KWh
air conditioner plug/16A plug
not less than 2.5square meters
13A
2.8-3.0KW
15-20KM
2.8-3.0KWh
air conditioner plug/16A plug
not less than 2.5square meters
16A
3.3-3.5KW
20-25KW
3.3-3.5KWh
air conditioner plug/16A plug
not less than 2.5square meters
Note:  The data above is typical values. It will vary according to your vehicle configuration, use environment, operating habits and power supply situation.

Integrating with R&D, production, and sales department, Wuhan Wanhe Qingtian New Energy Co., Ltd. has been deeply involved in the field of new energy vehicle charging for more than 10 years, and was formally acquired by Zhongbu Qiantian New Energy (HUBEI) Co., Ltd. in 2022.

With a core team of more than 100 people, including 30 R&D engineers and 11 senior technical engineers(10 of them are master’s degree holders), Wuhan Wanhe Qingtian New Energy Co., Ltd. operates products in the electric vehicle charging industry, such as AC and DC EV charging piles, shared EV charging piles and portable EV chargers. Our Parent company have got three major factories in Wuhan East Lake New Technology Development Zone, Changsha Yuhua District Newton Enterprise Center, and Shenzhen Guangming District, with a total area of ​​17,000 square meters. We have 2 mold manufacturing workshops (NC machining center, spark machining center, CNC machine tool, etc.), and introduced 10 large-scale instruments and equipment with a total value of more than 1 million (charging pile test load instrument, precision monitoring test machine, programmable constant temperature and humidity test chamber, wear resistance testing machine), with an annual output of about 50 thousand sets of products as a original manufacturer.

Q1. What’s the MOQ?

A: Most of our products are in stock,no MOQ.If you have customized requirements, please contact us. We will provide specific solutions for your requirements.
Q2. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q3. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.
Q4. How about your delivery time?
A: For products in stock, it will take 3 to 5 days after receiving your advance payment. The specific delivery time for customised products depends on the items and the quantity of your order.
Q5. What is your terms of packing?
A: We pack our goods in neutral cartons. If you have legally registered patent, we can pack the goods in your branded boxes after getting your authorization letters.
Q6. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We’ll show you the photos of the products and packages before you pay the balance.
Q7. What is your terms of delivery?
A: EXW, FOB, CFR, CIF, DDU.
