Product Description
![](http://sc04.alicdn.com/kf/Ha21a5b4548b142708a64f41396ce7d736/268039170/Ha21a5b4548b142708a64f41396ce7d736.jpg)
EV Charger Station
Feature:

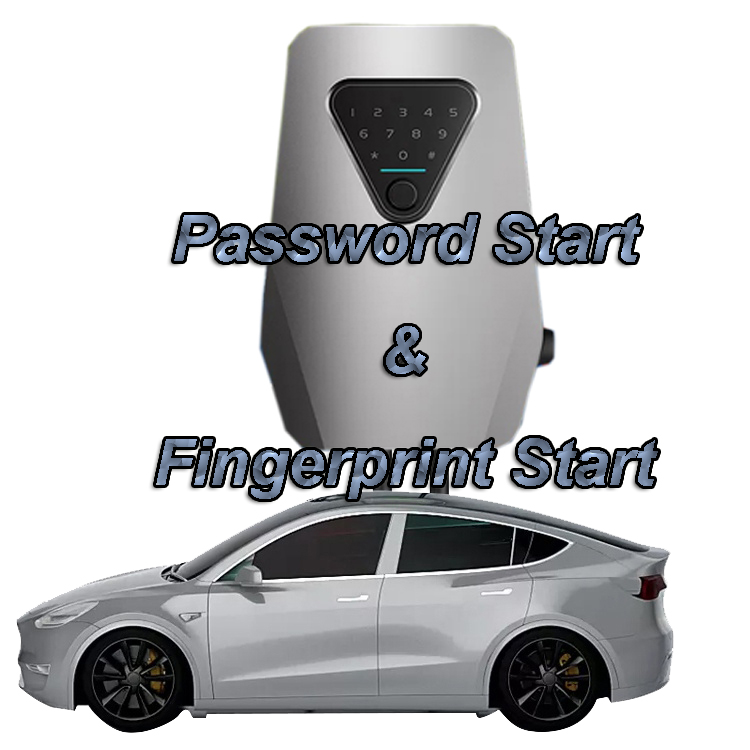

1.Password Start /FingerPrint Start
Anti-theft charging
2.7KW
3.Safe
4.CE ,RoHS ,UL Listed
5.IP55
Specification
——Input&Output——
|
|||
Input Voltage
|
220V±10%
|
Output Currency
|
32A
|
Input Frequency
|
55±10%
|
charging Gun Type
|
Type1 /Type 2 /GBT
|
Rated Power
|
7kw
|
cable Length
|
5 Meter Cable
|
——Optional Function——
|
|||
4.3 inch LCD Screen
|
Do not Support
|
Customized Cable Length
|
Optional
|
7 inch LCD Screen
|
Do not Support
|
RJ45
|
Optional
|
4G
|
Optional
|
Credit Card
|
Optional
|
wIFI/Bluetooth
|
Optional
|
Password/Fingerprint
|
Yes
|
——Protection——
|
|||
Over Voltage Protection
|
Yes
|
Ground Protection
|
Yes
|
Under Voltage Protection
|
Yes
|
Over Temperature Protection
|
Yes
|
Over Load Protection
|
Yes
|
Light Protection
|
Yes
|
Short Circuit Protection
|
Yes
|
Leakage Protection
|
Yes
|
——Working Environment——
|
|||
Protection degree
|
IP55
|
Maximum altitude
|
Up to 2000m
|
Environment Temperature
|
-20℃~+75℃
|
Cooling
|
Natural air cooling
|
Applicable Scene
|
Indoor /Outdoor
|
Standby power
|
5W
|
——Packing List——
|
|||
Q5 Charging Station
|
*1
|
Holster for J1772
|
*1
|
Type1 /Type 2 /GBT Plug for car
|
*1
|
User Manual
|
*1
|
Detail Show
![](http://sc04.alicdn.com/kf/Ha60d32f514a14d01951f6d4a3c8a3cf2Y/268039170/Ha60d32f514a14d01951f6d4a3c8a3cf2Y.jpg)
![](http://sc04.alicdn.com/kf/He52a0e33c17e49128d1295b52b1e25abG/268039170/He52a0e33c17e49128d1295b52b1e25abG.jpg)
![](http://sc04.alicdn.com/kf/Hb900135560b64b0ba1b71f24e5812362B/268039170/Hb900135560b64b0ba1b71f24e5812362B.jpg)
![](http://sc04.alicdn.com/kf/Hda85241534f344268bca6da1d884e47bu/268039170/Hda85241534f344268bca6da1d884e47bu.png)
![](http://sc04.alicdn.com/kf/Hbfd39904d4af47d0826b3789a719d5e9N/268039170/Hbfd39904d4af47d0826b3789a719d5e9N.jpg)
![](http://sc04.alicdn.com/kf/H626a1a4463de4ed0831ef1064b124c9dg/268039170/H626a1a4463de4ed0831ef1064b124c9dg.jpg)
![](http://sc04.alicdn.com/kf/Hccbd98c1d281427d861b02c0581b4f51k/268039170/Hccbd98c1d281427d861b02c0581b4f51k.jpg)
![](http://sc04.alicdn.com/kf/H5c9a9ca24f9148b1bad2fb1111b942d0s/268039170/H5c9a9ca24f9148b1bad2fb1111b942d0s.jpg)
Our Factory
![](http://sc04.alicdn.com/kf/H2379c0d87dd1428990ff0833715ea176b/268039170/H2379c0d87dd1428990ff0833715ea176b.jpg)
![](http://sc04.alicdn.com/kf/Hf79fd0132c5246e78e262fba44a190deh/268039170/Hf79fd0132c5246e78e262fba44a190deh.jpg)
![](http://sc04.alicdn.com/kf/H361e5752219c461680ca7ec468f551dcQ/268039170/H361e5752219c461680ca7ec468f551dcQ.jpg)
Packing & Delivery
![](http://sc04.alicdn.com/kf/He5543854e4fa4fbeb966e20f8bc77a16g/268039170/He5543854e4fa4fbeb966e20f8bc77a16g.jpg)
![](http://sc04.alicdn.com/kf/H09483486487d47af9c662e6018d389f9P/268039170/H09483486487d47af9c662e6018d389f9P.jpg)
Exhibition
![](http://sc04.alicdn.com/kf/Hd6735f0fe6de4cffa8efd4acac275cabu/268039170/Hd6735f0fe6de4cffa8efd4acac275cabu.jpg)
Company Profile
![](http://sc04.alicdn.com/kf/He30add1057484312aee907a96e096867R/268039170/He30add1057484312aee907a96e096867R.jpg)
Wuhan Wanhe Qingtian New Energy Co., Ltd. is a high-tech new energy enterprise specializing in production, design, R&D and sales, focusing on intelligent equipment for the new energy vehicle charging pile industry. The company currently employs more than 200 people, constantly absorbing senior technical personnel, and has 30 engineers and senior engineers who have been engaged in design and manufacturing for many years. With independent intellectual property rights and core technology, the products are exported to foreign countries wordwide.
